5Stars Aluminium sliding doors

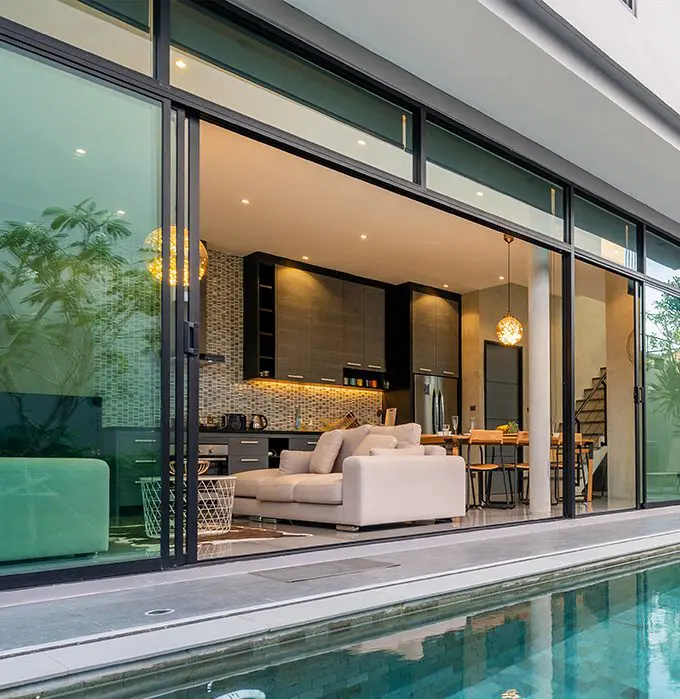

Due to the extended glazed area, the 5Stars sliding systems give rooms a high level of light, allowing easy penetration of natural light into the house.

5Stars sliding systems have the possibility to be equipped with venetian blinds.

Leave us your details, and we’ll contact you as soon as possible

Ask for a quote
- or book a video chat with one of our consultants:
VIRTUAL SHOWROOM
Advice
Advice on choosing the best products

Advantages of Paysage by QFORT 5Stars sliding doors

  • Due to the large glazed surface, it gives the room a high degree of brightness, by easily allowing the natural light getting inside, thus creating the concept of a spacious room;
  • It provides a high level of comfort to your home by maintaining an optimum temperature at any season;
  • It is characterized by easy and silent handling by using high level rolls;
  • There are available the constructions with 2, 3, 4 or 6 mobile sashes;
  • The possibility to provide venetian blinds

Technical details of Paysage by QFORT 5Stars sliding doors

Features of Paysage by QFORT 5Stars Sliding Systems

Paysage by QFORT 5Stars sliding systems have the following features:

  • The thickness of the glazing used to fit the Paysage sliding systems is 26-36 mm;
  • The mount depth is 70 mm for a two-rail frames, and 126 mm for three-rail frames;
  • The outer wall thickness of the profiles is 1.6 mm;
  • Paysage by QFORT sliding systems can be built with 2, 3, 4 or 6 moveable sashes;
  • Thermal insulation coefficient Uw ≥ 1.17 W/m²K*.
  • * Uw = 1.17 W/m²K value was obtained for a construction with L – 3400mm, H – 1792mm, two sashes and glazing with Ug = 0.7 W/m²K

previous arrow
next arrow

Types of opening of Paysage by QFORT 5Stars sliding doors

Paysage by QFORT 5Stars sliding systems are available in constructive options with 2, 3, 4 or 6 wings (moveable sashes), depending on the preferences and the type of space they are intended for.

2 wings

3 wings – 3-rail frame

3 wings – 2-rail frame

4 wings

6 wings

Pocket-sliding system of Paysage by QFORT 5Stars sliding doors

This system was designed to allow the largest possible opening by sliding the sash into the wall, and it is available for doors with 1, 2 or 4 hidden sashes, as can be seen in the graphical examples below:

1-rail pocket-sliding frame – opening to the right

1-rail pocket-sliding frame – opening to the right

1-rail pocket-sliding frame – opening to the left

1-rail pocket-sliding frame – opening to the left

1-rail pocket-sliding frame – double opening

1-rail pocket-sliding frame – double opening

2-rail pocket-sliding frame – opening to the right

2-rail pocket-sliding frame – opening to the right

2-rail pocket-sliding frame – opening to the left

2-rail pocket-sliding frame – opening to the left

2-rail pocket-sliding frame – double opening

2-rail pocket-sliding frame – double opening
