PVC Swing and slide doors

Paysage by QFORT

The PVC swing and slide doors allow natural light in, representing an ideal way to connect the inside and the outside space. These systems respond successfully to all aesthetic requirements, being thought so that they fit in any household, offering at the same time generous glazed surfaces.

The advantage they possess is that they allow both the opening by parallel sliding, as well as swing opening.

Leave us your details, and we’ll contact you as soon as possible

Ask for a quote
- or book a video chat with one of our consultants:
VIRTUAL SHOWROOM
Advice
Advice on choosing the best products

Benefits PVC Swing and slide systems

  • Swing opening offers a better ventilation of the rooms.
  • Multiple constructive options. It is possible to build them up to 4 mobile sashes ( 2 sliding ones + 2 swing ones).
  • They can be opened without taking up room.
  • Thanks to the used gaskets, these sliding systems have a high wind, rain and dust tightness.
  • They can be foiled in a various range of colors, bicolor option being available too. Moreover, this system allows aluminum cladding on the exterior in different matte RAL colors (with neat surface) and structured (sand looking like) or in wood like colors such as Golden Oak, Medium Oak or Walnut.
  • A wide range of handles is available, inclusively keyed handles for extra safety.

Technical Details of PVC Swing and slide doors

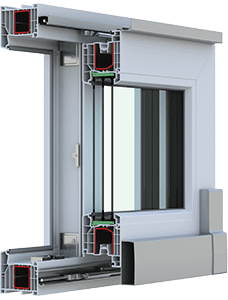

7Stars PVC Swing and slide doors

  • Assembly depth: 85mm;
  • Thickness of the outer wall of PVC profiles > 2.5mm;
  • Thermal insulation coefficient Uw ≥ 0.68 W/m²K* (7Stars with gasket);
  • Thermal insulation coefficient Uw ≥ 0.86 W/m²K** (7Stars without gasket);
  • Galvanized steel reinforcement: 1.25mm - 2mm (7Stars with gasket) / 1.25mm - 3mm (7Stars without gasket);
  • Three gaskets (7Stars with gasket) / two gaskets (7Stars without gasket);
  • Modern design (straight);
  • High resistance to wind, rain and dust;
  • Aluminium cladding is available on the outside in various matte RAL colours (with a smooth surface) and structural (with a granular aspect) or in wood shades, such as golden oak, medium oak and walnut.

* Uw = 0.68 W/m²K value was obtained for a construction with L - 2968mm, H - 1685mm, two sashes and glazing with Ug = 0.5 W/m²K

** Uw = 0.86 W/m²K value was obtained for a construction with L - 2968mm, H - 1685mm, two sashes and glazing with Ug = 0.5 W/m²K with Ug = 0.5 W/m²K

7-premium
previous arrow
next arrow

6Stars PVC Swing and slide doors

  • Assembly depth: 82mm;
  • Thickness of the outer wall of PVC profiles > 2.8mm;
  • Thermal insulation coefficient Uw ≥ 0.7 W/m²K*;
  • Galvanized steel reinforcement: 1.5mm - 2mm;
  • Three gaskets;
  • Modern design (straight);
  • Easy cleaning;
  • High resistance to wind, rain and dust;
  • Aluminium cladding is available on the outside in various matte RAL colours (with a smooth surface) and structural (with a granular aspect) or in wood shades, such as golden oak, medium oak and walnut.

* Uw = 0.7 W/m²K value was obtained for a construction with L - 3125mm, H - 1685mm, two sashes and glazing with Ug = 0.5 W/m²K

7-premium
previous arrow
next arrow

5Stars PVC Swing and slide doors

  • Assembly depth: 70mm;
  • Thickness of the outer wall of PVC profiles > 2.8mm;
  • Thermal insulation coefficient Uw ≥ 0.88 W/m²K*;
  • Galvanized steel reinforcement: 1.5mm - 2mm;
  • Two gaskets;
  • Classic rounded design in standard and optional straight design;
  • Easy cleaning;
  • High resistance to wind, rain and dust;
  • The most flexible option in terms of available options;
  • Aluminium cladding is available on the outside in various matte RAL colours (with a smooth surface) and structural (with a granular aspect) or in wood shades, such as golden oak, medium oak and walnut.

* Uw = 0.88 W/m²K value was obtained for a construction with L - 3125mm, H - 1685mm, two sashes and glazing with Ug = 0.6 W/m²K

7-premium
previous arrow
next arrow

4Stars PVC Swing and slide doors

  • Assembly depth: 70mm;
  • Thickness of the outer wall of PVC profiles > 2.5mm;
  • Thermal insulation coefficient Uw ≥ 0.89 W/m²K*;
  • Galvanized steel reinforcement: 1.25mm - 2mm;
  • Two gaskets;
  • Modern design (straight);
  • Easy cleaning;
  • High resistance to wind, rain and dust;
  • Aluminium cladding is available on the outside in various matte RAL colours (with a smooth surface) and structural (with a granular aspect) or in wood shades, such as golden oak, medium oak and walnut.

* Uw = 0.89 W/m²K value was obtained for a construction with L - 3125mm, H - 1685mm, two sashes and glazing with Ug = 0.6 W/m²K

7-premium
previous arrow
next arrow

Manufacturing options

Scheme A1: sliding/tilt
Not available for 7Stars with middle gasket.

Scheme A1: sliding/fixed

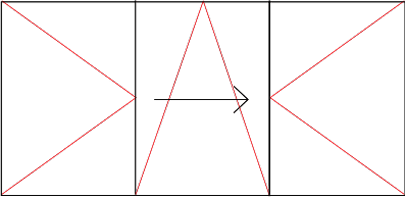

Scheme G1: tilt/sliding/tilt
Not available for 7Stars with middle gasket.

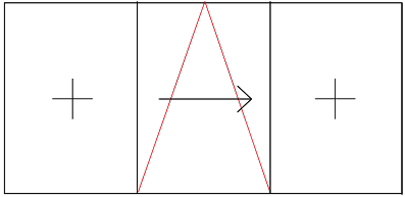

Scheme G: fixed/sliding/fixed

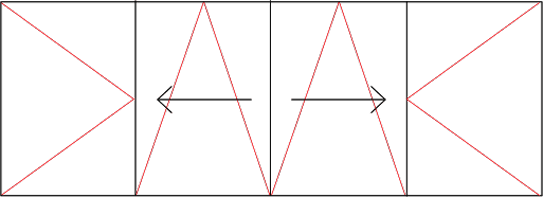

Scheme C1: tilt/sliding/sliding/tilt
Not available for 7Stars with middle gasket.

Scheme C: fixed/sliding/sliding/fixed
