4Stars Aluminium Sliding Systems

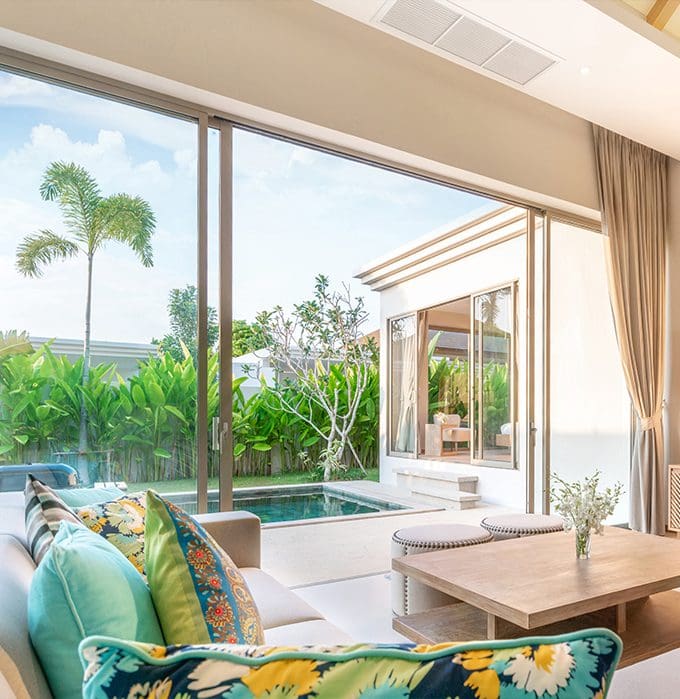

Due to the extended glazed area, the 4Stars sliding systems give rooms a high level of light, allowing easy penetration of natural light into the house.

The sash of the Paysage 4Stars sliding systems can be slid inside the wall (pocket-sliding function), offering the widest possible opening and saving a considerable amount of space.

Leave us your details, and we’ll contact you as soon as possible

Ask for a quote
- or book a video chat with one of our consultants:
VIRTUAL SHOWROOM
Advice
Advice on choosing the best products

Advantages of Paysage by QFORT 4Stars Sliding Systems

  • Due to the large glazed surface, it gives the room a high degree of brightness, by easily allowing the natural light getting inside, thus creating the concept of a spacious room;
  • It provides a high level of comfort to your home by maintaining an optimum temperature at any season;
  • It is characterized by easy and silent handling by using high level rolls;
  • There are available the constructions with 2, 3, 4 or 6 mobile sashes;
  • The sash can be slid inside the wall (pocket-sliding function), offering the widest possible opening and saving a considerable amount of space.

Technical details of Paysage by QFORT 4Stars Sliding Systems

Features of Paysage by QFORT 4Stars Sliding Systems

Paysage by QFORT 4Stars sliding systems have the following features:

  • The thickness of the glazing used to fit is 24 mm.
  • The mount depth is 65 mm and 80 mm for a two-rail frames, and 106 mm for three-rail frames.
  • The outer wall thickness of the profiles is 1.5 mm.
  • Can be built with 2, 3, 4 or 6 moveable sashes and pocket-sliding possibility (sliding inside the wall) on either one or two rails.

Types of opening of Paysage by QFORT 4Stars Sliding Systems

Paysage by QFORT 4Stars sliding systems are available in constructive options with 2, 3, 4 or 6 wings (moveable sashes), depending on the preferences and the type of space they are intended for.

Opening systems paysage - 2 wings

2 wings

Sliding doors Paysage - 3 wings – 3-rail frame

3 wings – 3-rail frame

Opening systems paysage - 3 wings – 3-rail frame

3 wings – 2-rail frame

Sliding doors Paysage - 4 wings

4 wings

Sliding doors Paysage - 6 wings

6 wings

Pocket-sliding function of Paysage by QFORT 4Stars Sliding Systems

Paysage by QFORT 4Stars is the first system made of aluminium that also has a pocket-sliding function.

The pocket-sliding function was designed to allow for the largest possible opening by sliding the sash into the wall, and it is available for doors with 1, 2 or 4 hidden sashes, as can be seen in the graphical examples below:

1-rail pocket-sliding frame – opening to the right

1-rail pocket-sliding frame – opening to the right

1-rail pocket-sliding frame – opening to the left

1-rail pocket-sliding frame – opening to the left

1-rail pocket-sliding frame – double opening

1-rail pocket-sliding frame – double opening

2-rail pocket-sliding frame – opening to the right

2-rail pocket-sliding frame – opening to the right

2-rail pocket-sliding frame – opening to the left

2-rail pocket-sliding frame – opening to the left

2-rail pocket-sliding frame – double opening

2-rail pocket-sliding frame – double opening
